Configure your TUNE Network

Offer protocol

When creating offers, ensure that Conversion Tracking is set to one of the following options for Postback tracking:

• Server Postback w/ Transaction ID

• Server Postback w/ Partner ID

When using Server Postback w/ Transaction ID, if conversions need to be attributed to a default offer goal, ensure that only transaction_id is sent in the custom_parameters. Do not send goal_name or goal_id.

Specify Amounts on Conversion

In order to set the revenue amount via the mParticle event custom attributes, there is one network setting that needs to be changed.

Update the following setting under Company → Customize Application → Settings → Tracking:

• Specify Amounts on Conversion: Enabled

mParticle Events

Custom Events

The TUNE-mParticle integration supports mParticle Custom Events and is able to process values from:

• User Identities

• the custom_attributes map

Required fields

For an mParticle event to successfully record a conversion, the following fields will be required in the custom_attributes:

• goal_name

• For offers using theServer Postback w/ Transaction ID protocol:

  • transaction_id

• For offers with Server Postback w/ Partner ID protocol:

  • affiliate_id

  • offer_id

Additional parameters

Customers should provide their TUNE CSM with the list of mParticle parameters that they want to include in the TUNE conversion. It should also be specified how those parameters are going to match the TUNE parameters that are going to be used for the conversion.

Ultimately, TUNE will generate a JSON file to represent the field mapping. Here’s an example of a JSON file:

{
"UserIdentities":{
  "customer":{"Destination":"adv_sub"},
  "other":{"Destination":"adv_sub2"}
},
"CustomAttributes":{
  "tune_transaction_id":{"Destination":"transaction_id"},
  "goal_name":{"Destination":"goal_name"},
  "offer_id":{"Destination":"offer_id"},
  "affiliate_id":{"Destination":"aff_id"},
  "revenue":{"Destination":"revenue"},
  "currency":{"Destination":"currency"}
  }
}

Production and Development environments

mParticle offers customers the option to send events to two environments: production and development. Customers should be able to specify the environment in the mParticle request using the environment variable:

 "environment": "production"

Customers can refer to the user-agent in the Conversion Report to identify which TUNE conversions came from an mParticle event. The user-agent will be set to:

• mparticle/v1.x.x for events sent to the Production environment

• mparticle-development-test/v1.x.x for events sent to the Development environment

Note: The user-agent field may not be available in the default view of the Conversion Report. To add the user-agent field to the report, click to expand the ‘Options’ panel, select the ‘User Agent’ checkbox and click the ‘Run Report’ button.

Forward mParticle events to your TUNE network

To enable the mParticle integration:

1. Create the TUNE connection in your mParticle account

2. Setup the mParticle Input feed

3. Configure the TUNE data connector

4. Send a test event to mParticle

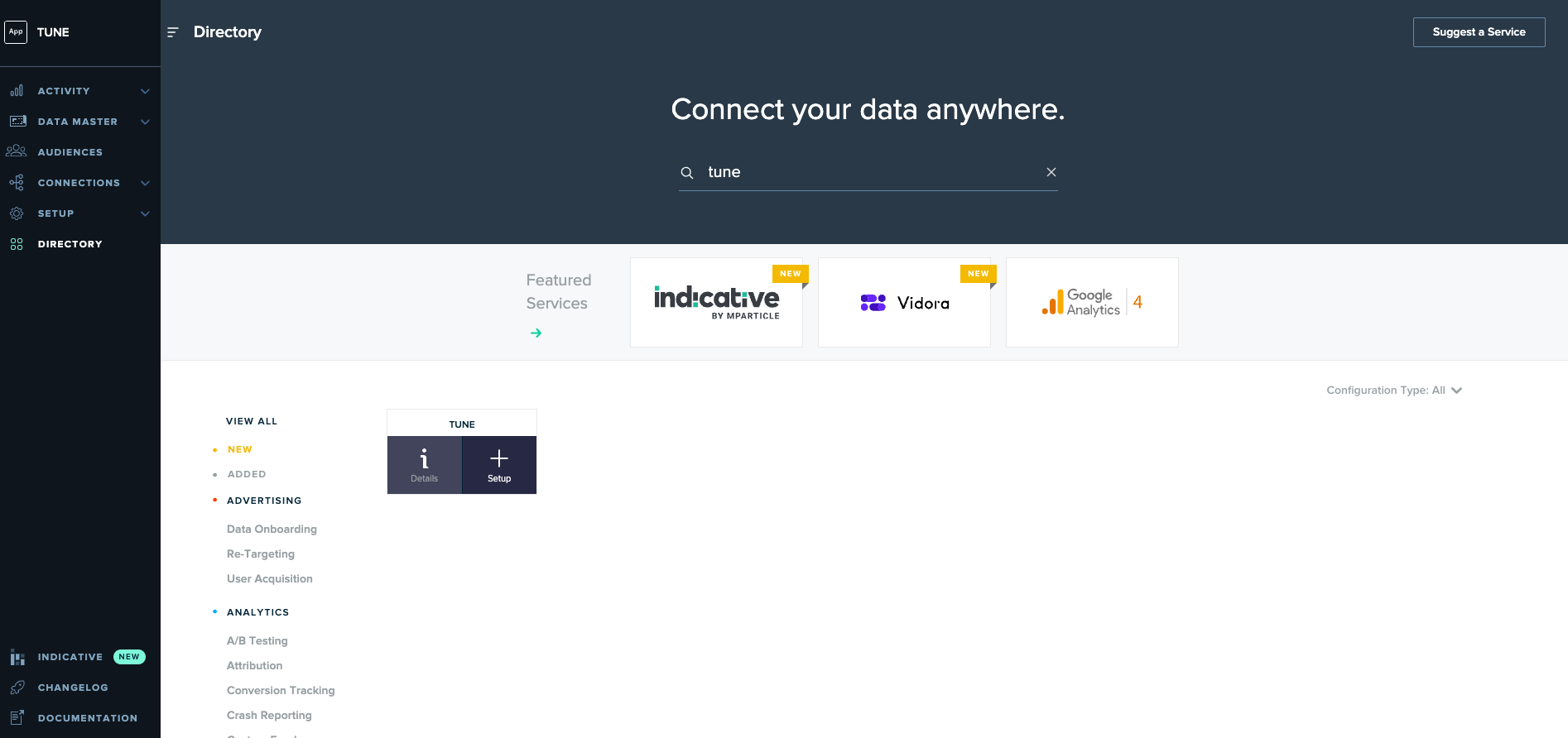

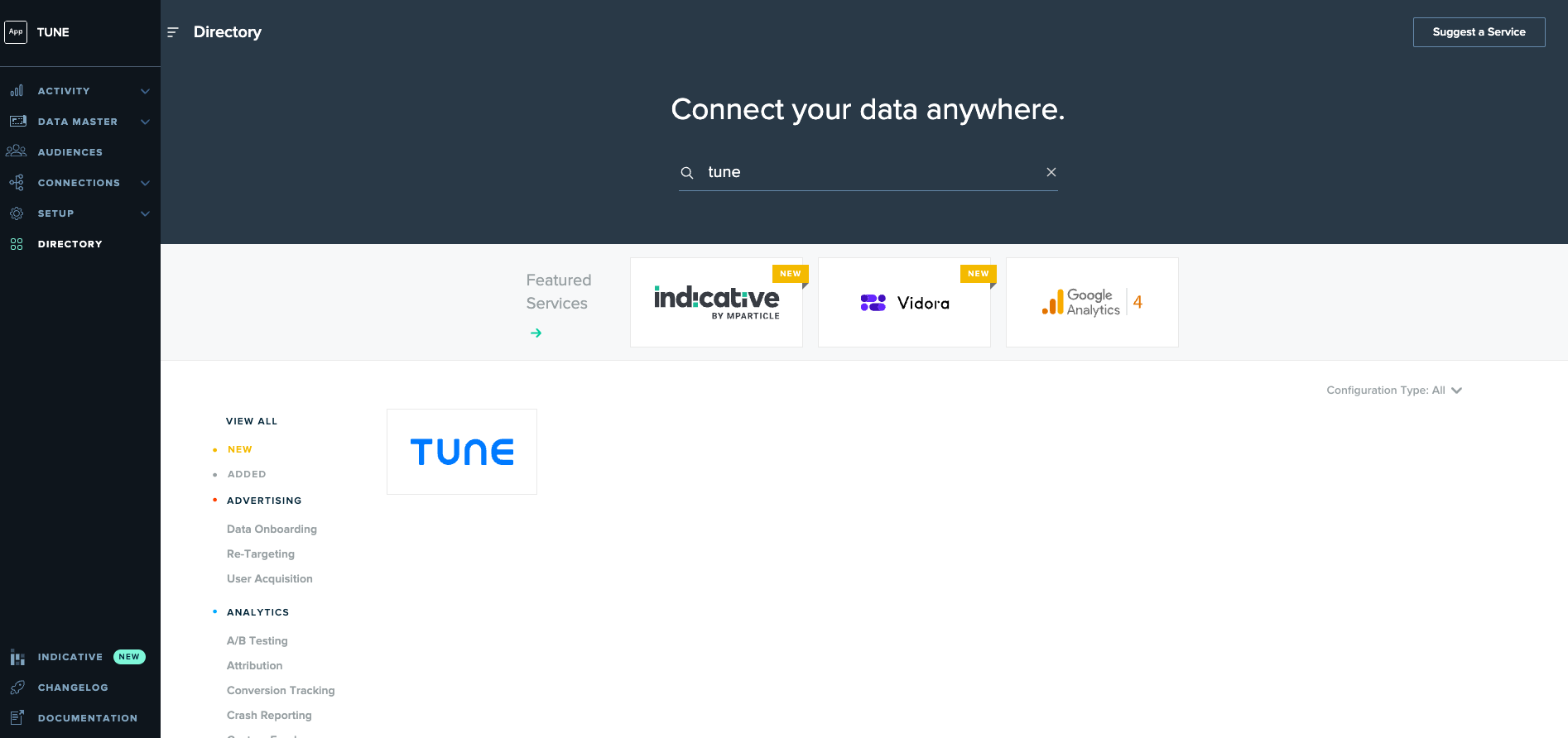

Create the TUNE connection in mParticle

On your mParticle home page:

1. In the left-hand sidebar, click on Directory

2. Find the TUNE connector





3. Hover over the tile and click on Setup





4. Select the Output Event option and click on Configure



1. Set the value for the following fields:

2. 1. 1. 1. Configuration name

         2. TUNE network ID (this will set the network_id for both mParticle environments: Production and Development)

      2. Click on Save

Setup the mParticle Input feed API key

On your mParticle home page:

1. In the left-hand sidebar, click on Setup

2. Select the desired platform and click on +Configure

3. Click on Issue Keys

4. Store the Key and Secret values

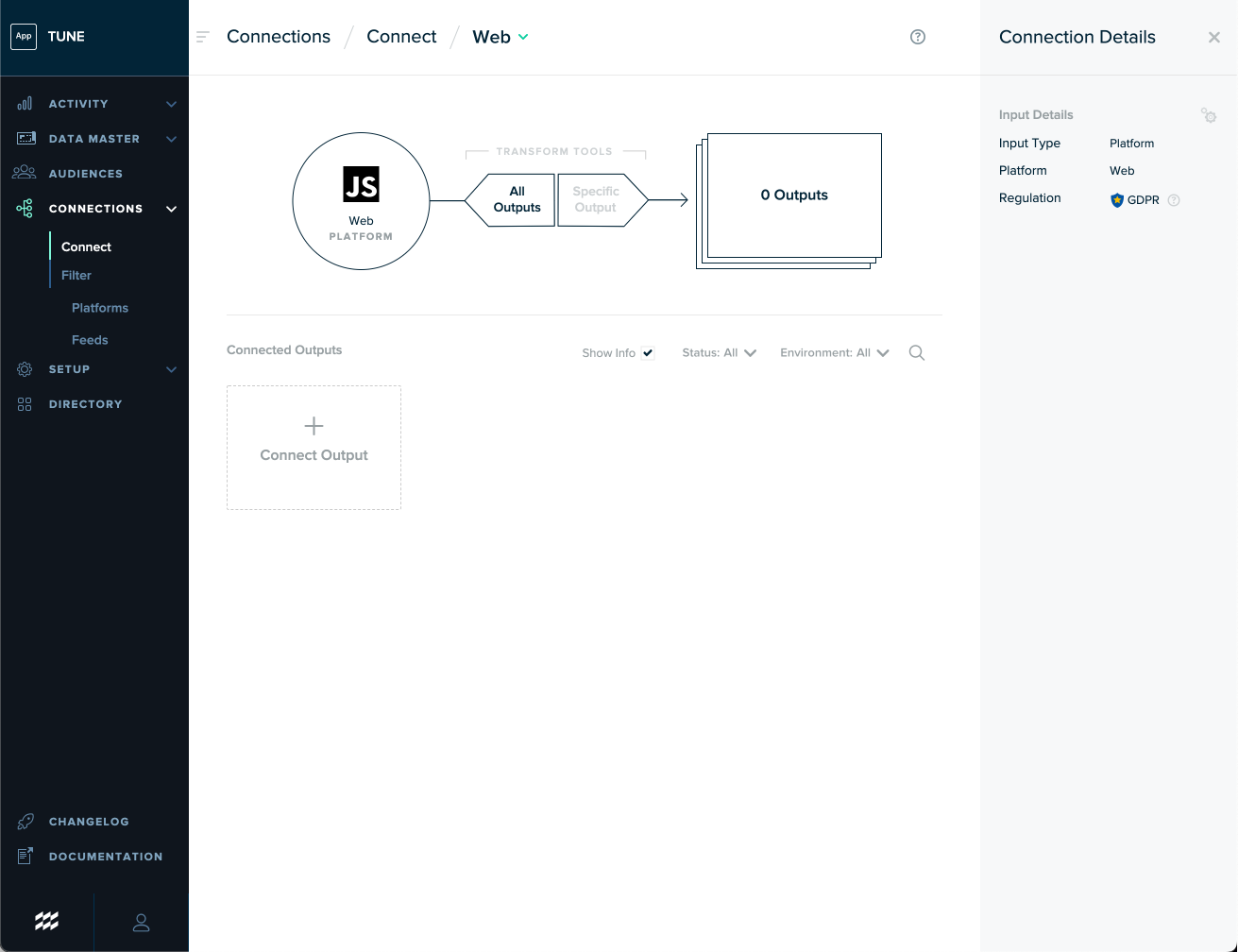

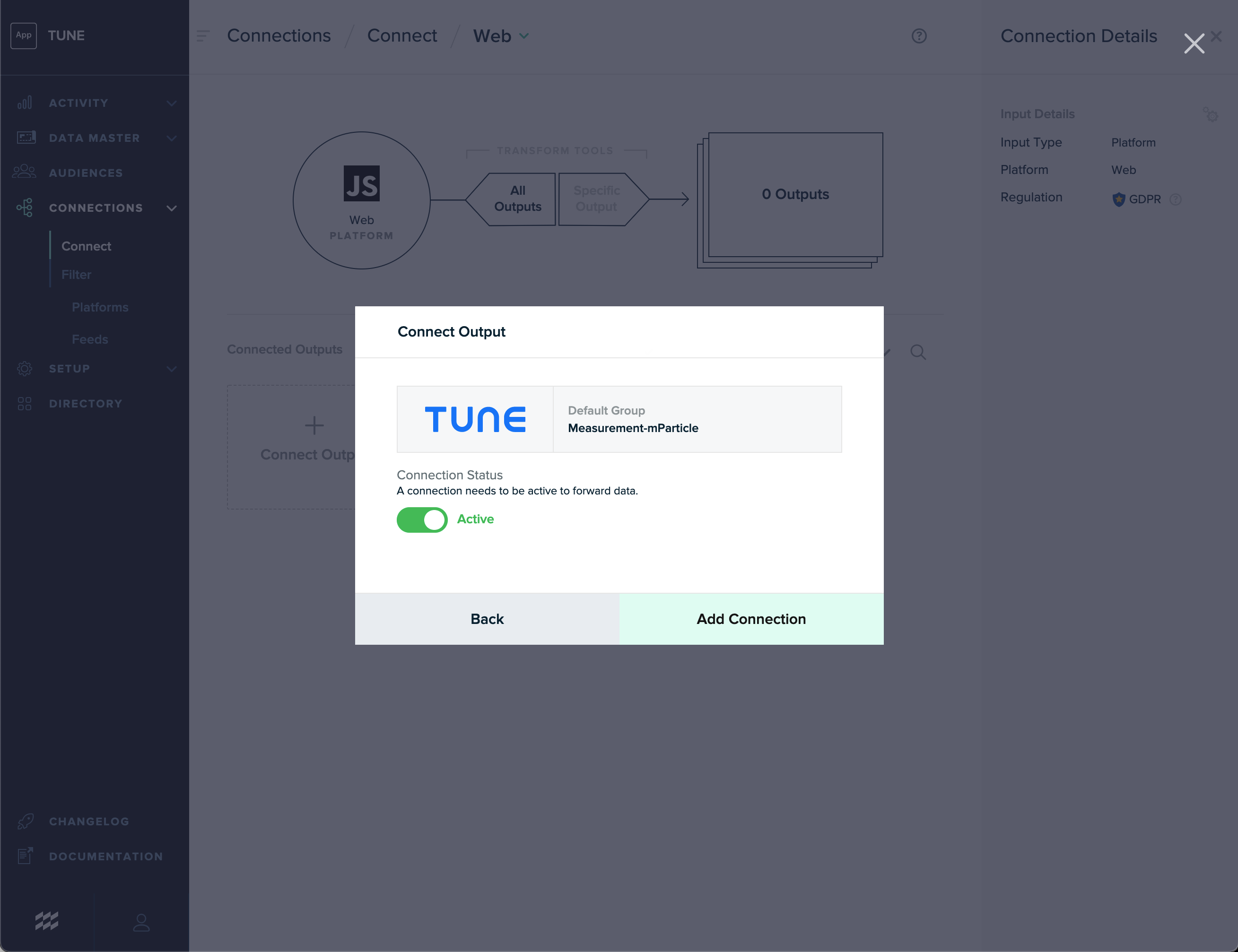

Configure the TUNE data connector

On your mParticle Home page, click on Connections.

1. Select the available input

2. Click on Connect output

3. Select the TUNE configuration

4. Activate the connection

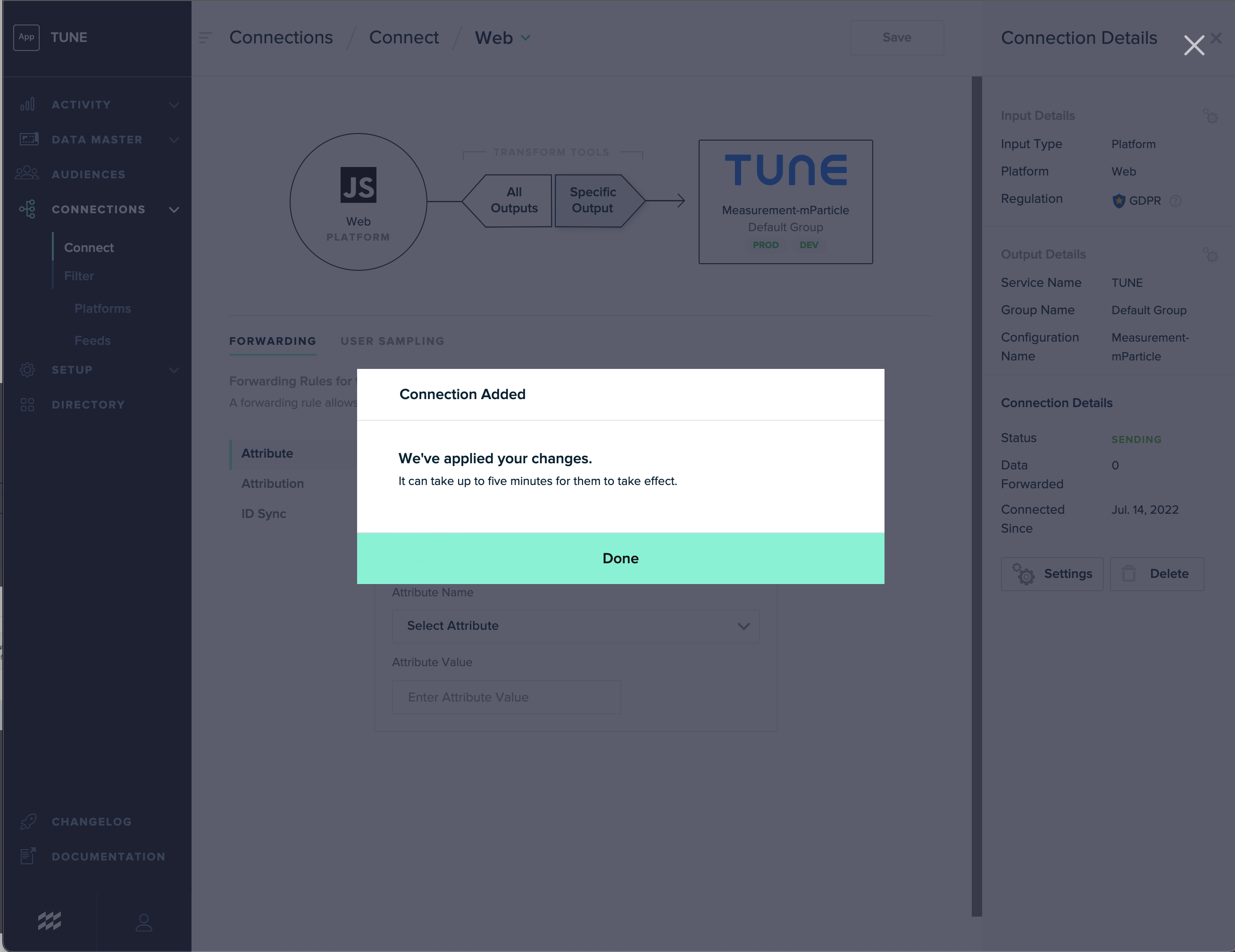

5. Click ‘Done’

Note: Allow up to five minutes for the connection to take effect.

Send a test event to mParticle

Using the HTTP API might be the easiest way to send a test event to mParticle. You are going to need the Key and Secret that was generated when you set up the mParticle Input feed.

You can find additional details on how to post events to the mParticle API on this page.

Sending events via Postman

Endpoint

Set up a POST request to the following endpoint:

• https://inbound.mparticle.com/s2s/v2/events

Authentication

Under the Auth tab:

1. Set Type to Basic Auth

2. Use the mParticle input feed Secret as the username

3. Use the mParticle input feed Key as the password

TUNE session and goal

In your TUNE network:

1. Create a goal (Conversion event type) for the offer you are using for testing

2. Create a session for the offer you are using for testing

   1. Generate a tracking link for the offer

   2. Click on the link and store the transaction_id

Note: If conversions need to be attributed to a default offer goal, ensure that only transaction_id is sent in the custom_parameters. Do not send goal_name or goal_id.

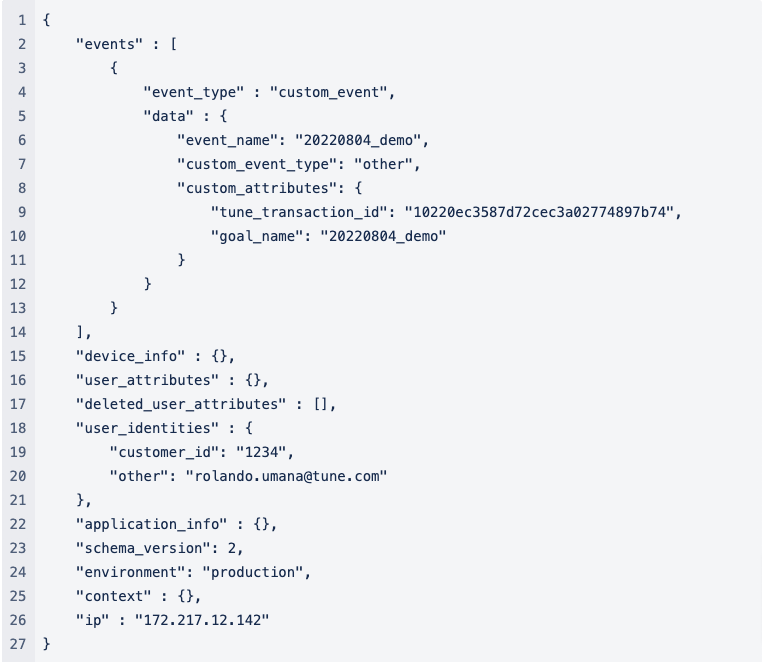

Request Body

The following request body records a conversion for the mParticle offer for the measurement network, under the 20220804_demo goal name.

Checking your mParticle activity

To review activity in mParticle, visit: https://app.mparticle.com/activity/app
